GMDSOFT Tech Letter Vol19.App Artifact Analysis: Text Input Records

Text entered on a mobile device can be stored and managed by keyboard apps to improve features such as auto-completion and data learning. Therefore, not only messenger apps that contain large volumes of messages, but also keyboard apps that store keyboard text artifacts are forensically significant sources of evidence during investigations.

Text input methods on mobile devices vary by language. Some languages, such as English, allow direct text entry without conversion, while others require a conversion process before finalizing the input. Japanese is a prime example of the latter. Japanese users typically input text in romaji (Latin alphabet) or hiragana, then convert it to hiragana, katakana, or kanji and confirm their final input. For languages with conversion processes like Japanese, keyboard apps can retain various text input records, including initial input, suggested conversions, and final confirmed text.

This article aims to explore the available information from keyboard apps from Android and iOS, focusing primarily on Japanese input records. The findings are based on data extracted from Android 12.0 and iOS 16.7 devices via MD-NEXT v2.2.12 and analyzed via MD-RED v4.0.8.

Table of Contents

• Keyboard Input Process
• Available Information by Keyboard App
  • Android
    • Gboard
    • Wnn Keyboard Lab
    • Samsung Keyboard
    • Simeji Keyboard
  • iOS
    • Default Keyboard
    • Biome
  • Available Information by Keyboard App
• Summary

---

1.Keyboard Input Process

Japanese uses three writing systems, hiragana, katakana, and kanji. It is characterized by multiple kanji characters that share the same pronunciation but convey different meanings, as well as individual kanji that can be read in multiple ways. Because of these complexities, Japanese input requires users to first enter text in romaji or hiragana, then select from suggested words (to hiragana, katakana, or kanji) presented by the keyboard app to determine the final text.

2.Available Information by Keyboard App

2.1 Android

Gboard

Gboard is a keyboard app developed by Google that supports multiple languages and integrates features such as Google Translate and Google Search.

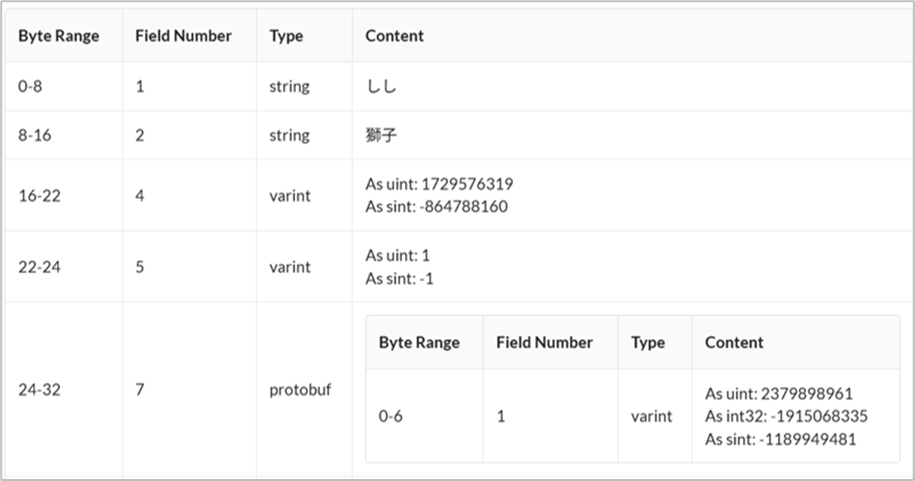

The input text records and the timestamp of entry are stored in the history.db file located under the /.mozc directory. Within this file, both the input text and the corresponding input timestamp are stored in an encrypted Protocol Buffer format.

Wnn Keyboard Lab

Wnn Keyboard Lab is a keyboard app installed on many Android devices manufactured by Japanese vendors. It stores input records using the OpenWnn structure, an open-source input framework developed by Japanese manufacturer Omron.

Text input records are stored in njuserl.a and njuserw.a files under the /files/discet/master directory.



Samsung Keyboard

Samsung Keyboard is the default keyboard app preinstalled on Samsung mobile devices. Similar to Wnn Keyboard Lab, Samsung Keyboard uses the OpenWnn structure, resulting in a similar data storage format. Japanese text input records are stored in njuserl.a and njuserl_uniq.a files under the /app_omrondb/dicset/master directory.

Simeji Keyboard

Simeji Keyboard is a third-party keyboard app that supports a wide range of emojis and theme customization features. Text input records are stored in the following locations.

• /database

• /file/dat

Text input content and the timestamp of the last input can be identified in the SimejiProvider.db file located under the /database directory.

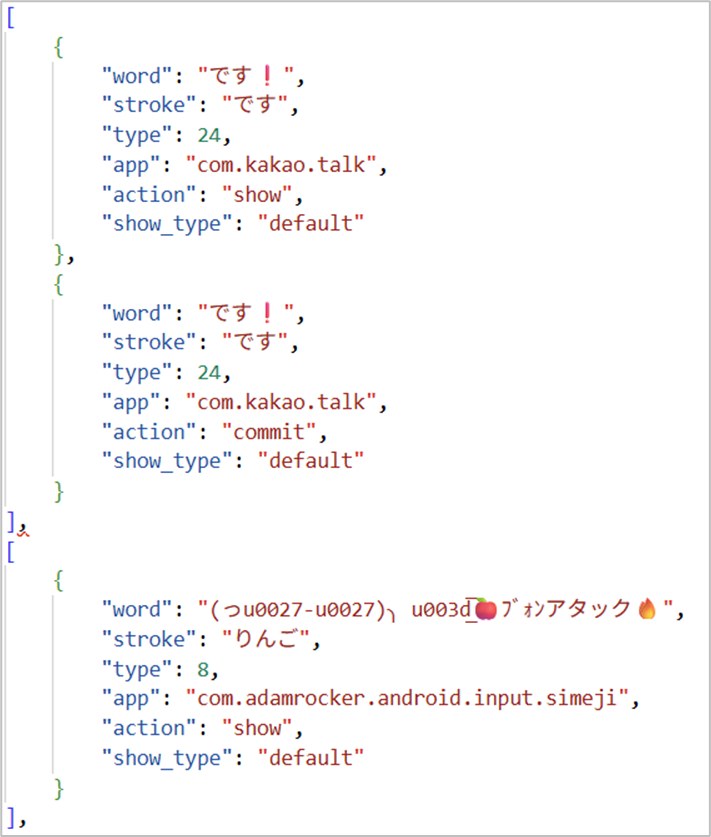

In addition, plaintext records of input text and the package name of the application in which the text was entered are stored in the fcloud.dat file under the /files/dat directory. The dad_info.dat file, stored in the same path, records the time at which a text input field was displayed. These records may be created even when no text is entered, as long as a keyboard appears on the screen.

The following table summarizes the information above.

2.1 iOS

Default Keyboard

For the default keyboard built into the iPhone, keyboard input records are stored in plaintext in the following files under the /private/var/Mobile/Library/Keyboard directory.

• LexicalLearning_ja_JP.db

• DynamicPhraseLexicon_ja_JP.db

Biome

The Biome directory is known to store system logs such as user activity data, device usage information, application execution records, and Siri-related events. Text input records on iOS devices are also stored under the /private/var/mobile/Library/Biome.

Under the /restricted/Keyboard.TokenFrequency/local directory, numerically named file contains records saved by session. These data are serialized and stored in SEGB format.

Under the /public/TextInputSession/local directory, numerically named file stores keyboard usage logs, and the application package name. These data are serialized in SEGB format.

2.3 Available Information by Keyboard App

3.Summary
